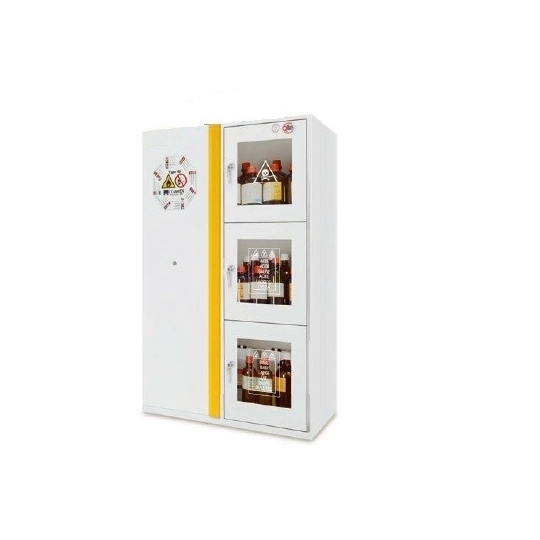

Safety cabinet 4 modules: fire-resistant 90 min/for acids/bases/toxins COMBISTORAGE size XL
Reference:
103-1-WCE-1086
- 90 min fire resistance: insulation compliant with EN 14470-1; automatic sealing system for doors and ventilation ducts in the event of fire.
- 4-module configuration: section for flammables (solid doors, 3 shelves + tray) and three sections for acids/bases/toxins (glass doors, 2 shelves each).
- Durable protection: galvanized housing with acid-resistant epoxy coating; interior made of HPL laminate resistant to aggressive vapors.
- Specification: dimensions 1200 x 600 x 1950 mm; weight 315 kg; grounding, non-sparking hinges and leveling feet included.
- Certification: full compliance with EN 16121 and EN 61010; optional ventilation (standard or EX/ATEX).
Four-door cabinet for hazardous substances intended for storing chemicals, toxic substances, and flammable materials. Fire-resistant cabinet module tested for 90 minutes in accordance with EN14470-1 BV. It effectively protects the substances stored inside in the event of a fire. The cabinet with modules allows storage of several types of hazardous substances in one place, under safe conditions.
- Ventilation:
- preparation for ventilation through an opening Ø 100 mm
- extension of the manufacturer's warranty to 3 years for cabinets connected to ventilation or equipped with ventilation/filter ventilation devices
- the structure allows replacement of spare parts if needed
- FIRE-RESISTANT MODULE:
- internal finish: melamine boards with high resistance to chemicals and aggressive vapors
- door closing and locking system allowing the doors to remain open and their automatic closing when the ambient temperature exceeds 50 °C
- 30 mm thermally expanding insulating seals which, in the event of a temperature rise, ensure perfect sealing of the housing, in accordance with EN14470-1
- ACID/ALKALI/TOXIN MODULE:
- We recommend equipping the cabinet with a fan or filter fan in standard or EX/ATEX version.
Note! The entire cabinet is not fire-resistant. Compliance with EN14470-1 applies to the module for flammable materials. The chemical modules comply with EN 61010-1.
Product Details
- Reference
- 103-1-WCE-1086
- Color
- jasnoszary RAL 7035
- Weight
- 315 kg
- Warranty
- 3 lata dla szaf z wentylacją, 1 rok dla szaf bez wentylacji
- Country of production
- Włochy
- Certificates
- CE, EN14470-1, EN61010, EN16121
- External dimensions (WxDxH)
- 1200 x 600 x 1950 mm
- Internal dimensions (WxDxH)
- 1 x 496 x 446 x 1540 mm, 3 x 590 x 500 x 580 mm
- Door construction
- czteroskrzydłowe
- Number of shelves
- 9 szt.
- Capture tub
- tak
- Housing
- blacha stalowa, ocynkowana
- Fire resistance
- 90 min dla modułu ognioodpornego
- Shelf load capacity
- 60 kg
