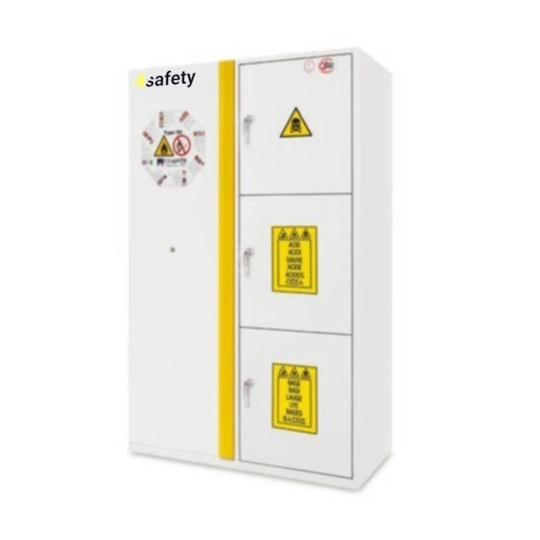

Safety cabinet 4 modules: fire-resistant 90 min/for acids/bases/toxins COMBISTORAGE size XL

Reference: 103-1-WCE-1177
  • 90 min fire resistance: full insulation compliant with EN 14470-1; automatic sealing system for doors and ventilation ducts at fire temperature.
  • Four independent modules: separate sections for flammable materials (3 shelves + tray), acids, bases and toxins (2 shelves per module) with a four-leaf door system.
  • Chemical protection: galvanized sheet steel housing coated with acid-resistant epoxy resin; interior made of HPL laminate resistant to aggressive fumes.
  • Specification: external dimensions 1200 x 600 x 1950 mm; weight 313 kg; equipped with non-sparking hinges, grounding and leveling jacks.
  • Certification: compliant with EN 16121 and EN 61010; optional ventilation installation available (STD or EX/ATEX version).
zł24,832.96 Tax excluded
zł30,544.54 tax incl.
Ask about product
Safety cabinet 4 modules: fire-resistant 90 min/for acids/bases/toxins COMBISTORAGE size XL

Safety cabinet 4 modules: fire-resistant 90 min/for acids/bases/toxins COMBISTORAGE size XL



!
Termin realizacji: 10-14 dni robocze
Payment methods (instant transfer, credit/debit card, BLIK, pro forma invoice)
Payment methods (instant transfer, credit/debit card, BLIK, pro forma invoice)
Koszty wysyłki (darmowa dostawa od 3000 zł netto)
Shipping costs (free shipping on orders of 690 euro net or more)
Dodając produkty do koszyka, możesz wygenerować ofertę w PDF
When you add products to your cart, you can generate a quote in PDF format

Four-door cabinet for hazardous substances intended for storing chemicals, toxic substances, and flammable materials. The fire-resistant cabinet module was tested for 90 minutes in accordance with EN14470-1 BV. It effectively protects the substances inside in the event of a fire. The cabinet with modules allows the storage of several types of hazardous substances in one place, under safe conditions.

  • external finish: acid-resistant epoxy resin
  • separation by means of panels made of 18 mm thick HPL covered with intumescent seals
    • Ventilation:
      • preparation for ventilation through an Ø 100 mm opening
      • extension of the manufacturer's warranty to 3 years for cabinets connected to ventilation or equipped with ventilation/filter ventilation devices

    • the construction allows replacement parts to be exchanged if necessary
    • FIRE-RESISTANT MODULE:
        internal finish: melamine boards with high resistance to chemicals and aggressive vapors
    • door closing and locking system allowing the doors to remain open and to close automatically when the ambient temperature exceeds 50 °C
    • 30 mm intumescent insulating seals which, in the event of a temperature increase, ensure excellent sealing of the housing, in accordance with EN14470-1
    • ACID/ALKALI/TOXIN MODULE:
        We recommend equipping the cabinet with a fan or filter fan in the standard or EX/ATEX version.

        Note! The entire cabinet is not fire-resistant. Compliance with EN14470-1 applies to the module for flammable materials. The modules for chemicals comply with EN 61010-1.

    Product Details

    Reference
    103-1-WCE-1177
    Color
    jasnoszary RAL 7035
    Weight
    313 kg
    Warranty
    3 lata dla szaf z wentylacją, 1 rok dla szaf bez wentylacji
    Country of production
    Włochy
    Certificates
    CE, EN14470-1, EN61010 i EN16121
    External dimensions (WxDxH)
    1200 x 600 x 1950 mm
    Internal dimensions (WxDxH)
    1 x 96 x 446 x 1540 mm, 3 x 590 x 500 x 580 mm
    Door construction
    czteroskrzydłowe
    Number of shelves
    9 szt.
    Housing
    blacha stalowa, ocynkowana
    Fire resistance
    90 min
    Shelf load capacity
    60 kg
