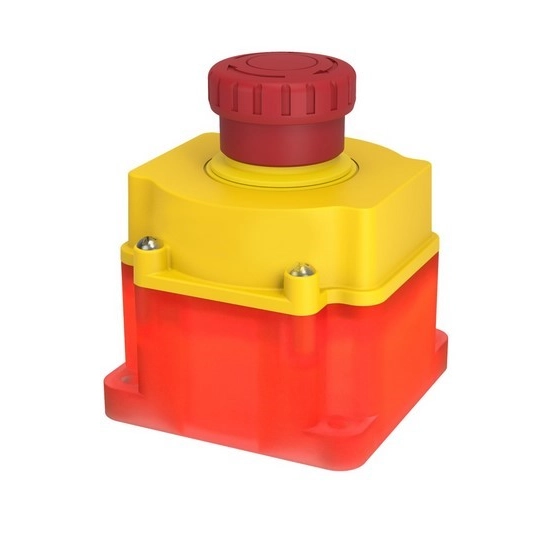

Emergency push button with mushroom head

Electromechanical mushroom-type emergency stop button with illumination. The button enables the machine to be stopped immediately in an emergency situation, machine failure, or hazard. Thanks to the colored illumination, the switch is highly visible and easy to locate even in difficult conditions.

The button is released by pressing, turning, or pulling. It combines the function of a traditional switch and an EZ-LIGHT indicator.

The switch illumination color changes depending on the switching state:

• safe state: yellow,
• stop signal from the circuit: red,
• button activated: flashing red.

Why choose an emergency button?

• immediate power disconnection in a crisis situation,
• easy installation without the need for assembly or individual wiring,
• option to fit a lock to prevent unwanted unlocking of the button,
• local fault reset is permitted at any time,
• clear and highly visible light indicators,
• made of durable material resistant to dirt and water.

Release button by pressing, turning, or pulling, compliant with CEIC60947-5-5 requirements. Safe state: yellow. Stop signal from the circuit: red. Button activated: flashing red. Protection rating: IP65. Compliance with ANSI B11.19, NFPA 79 and IEC/EN 60204-1, ISO 13850 standards. Two safety contacts, one auxiliary contact. 8-pin vertical M12 quick connector. Operating temperature: -25°C +60°C. Button diameter: 40 mm.
