Laboratory eyewash stations – Application, requirements and availability

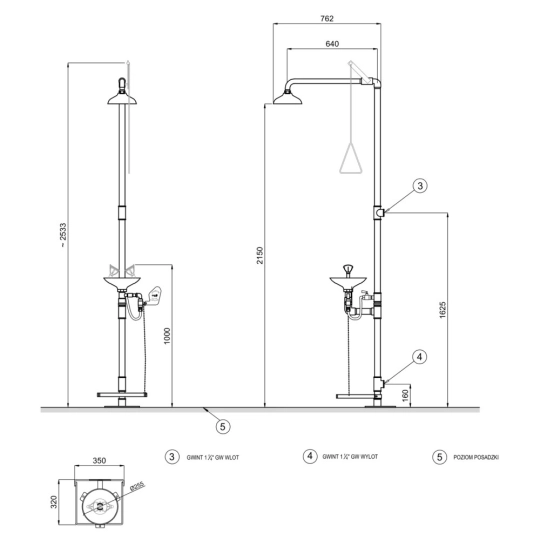

Combined shower and eyewash unit floor-mounted with foot pedal entirely made of stainless steel
- Versatile protection: 2-in-1 device integrating an emergency shower (120 l/min) and an eye and face wash station (14 l/min) for comprehensive body rinsing.
- Triple activation system: The shower is activated by a pull rod with a triangular handle, while the eye wash station is operated by a hand lever or a convenient foot pedal.
- Solid construction: Construction made almost entirely of stainless steel, ensuring high corrosion and mechanical resistance.
- Full certification: Device compliant with rigorous safety standards (including EN 15154-1 and 2, ANSI Z358.1-2004) and marked with the CE sign.
- Operating parameters: Supply 1 1/4" female thread; operating pressure 0.2–0.5 MPa at a recommended water temperature range of 15–35°C.
The floor-mounted combination unit with an additional foot pedal is an advanced safety solution that combines the functions of an emergency shower and an eye and face wash station.
Functions:
- The emergency shower enables quick rinsing of hazardous liquids from the entire body.
The eye and face wash station provides effective rinsing of the face and eyes, which is crucial in the event of contact with chemicals or other harmful materials.
Eye wash station:
- Activated using a hand lever located next to the eye wash bowl.
Alternatively, it can be activated using a foot pedal, allowing the user to operate the device hands-free.
Shower:
-
Activated using a hand lever equipped with a triangular handle, allowing the shower to be started quickly.
Construction:
- The unit is made of stainless steel, which ensures high corrosion resistance and durability in demanding conditions.
The eye wash nozzles are made of a different material, adapted to the specific requirements of rinsing the eyes and face.
Installation:
- Floor-mounted, which ensures stability and easy access in emergency situations.
The design allows simultaneous use of the shower and the eye and face wash station.
The set includes an occupational health and safety sign indicating the location of the device and how to use it, which is important for ensuring safety in the workplace.
Product Details
- Reference
- 110-1-WBC-1039
- Material
- stal malowana
- Finish
- zielona żywica epoksydowa RAL 6029
- Feed water pressure
- min. 0,2 MPa, max 0,5 Mpa
- Shower performance
- 120 l/m(przy 0,3 MPa)
- Eyewash performance
- 14 l/m(przy 0,3 MPa)
