Laboratory eyewash stations – Application, requirements and availability

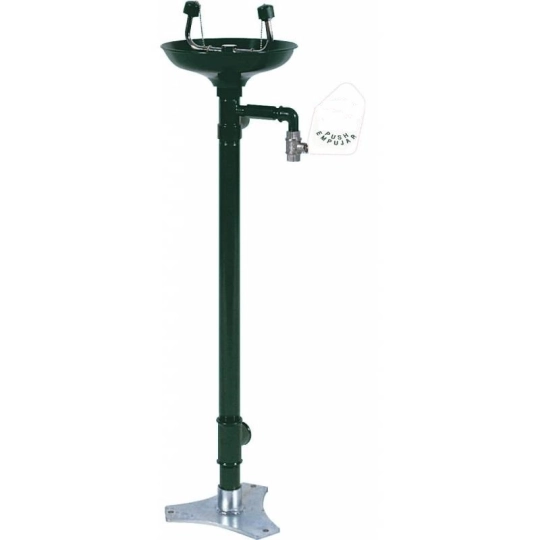

Floor-mounted eyewash, double with manual valve
- Durable construction: Galvanized steel powder-coated with brass connectors and a bowl made of highly resistant PP plastic.
- Efficient flushing system: Spout with water stream aeration with a flow rate of 14 l/min (at a pressure of 0.3 MPa).
- Dual operation: Intuitive manual valve enabling quick activation of the device in emergency situations.
- Connection standards: 1/2" female water inlet and 1-1/4" female outlet (drain), adapted to working pressure of 0.2–0.5 MPa.
- Compact dimensions: The column height is 1020 mm, and the receiver bowl diameter is 255 mm.
Other variants of this product
Lead time: 1–2 business days
Lead time: 2 weeks
Lead time: 2 weeks
Lead time: 2 weeks
A floor-mounted eyewash station is an indispensable safety device in any workplace where there is a risk of the eyes coming into contact with hazardous substances.
It has been designed for maximum efficiency and ease of use in emergency situations.
Construction:
- The entire structure of the station is made of durable galvanized steel, which provides excellent protection against corrosion.
The steel is also resistant to mechanical damage. - The surface of the steel components is powder-coated, which increases resistance to external factors such as moisture, chemicals, and UV radiation.
Powder coating also ensures an aesthetic appearance and ease of cleaning. - All connecting elements are made of brass, which is characterized by high corrosion resistance and a long service life.
Brass is also a material that ensures leak-tight connections and reliability in operation.
Eyewash bowl:
- The bowl is made of flexible PP plastic, known for its high chemical resistance. Polypropylene is a material that does not react with most chemicals,
which ensures safety and hygiene during use. The flexible nature of PP makes the bowl resistant to cracks and mechanical damage, which guarantees long-term use.
Eyewash outlet:
- The outlet is equipped with an advanced water stream aeration system that ensures a gentle and effective water flow.
The aerated stream is more effective at removing contaminants from the eyes while minimizing the risk of damage to the delicate eye tissue.
Operation:
- The station is equipped with a dual-operation system, which means it can be activated using two independent methods, increasing its functionality and safety.
It operates both via a manual valve and an additional foot-activated mechanism. The manual valve allows for quick and easy activation of the water flow, which is crucial in sudden situations.
The set includes an occupational health and safety sign that clearly marks the location of the station and instructions for its use. The sign is made of durable material and is easy to install in a visible place.
Product Details
- Reference
- 110-1-WBC-1042
- Dimensions (W x D x H)
- 400 x 255 x 1030 mm
- Material
- stal nierdzewna
- Inlet valve
- wlot 1/2 GW
- Feed water pressure
- min. 0,2 MPa, max 0,5 Mpa
- Performance
- 14 l/min przy 0,3 MPa
- Recommended water temperature
- min. 15°C, max 35°C
- Finish
- zielona żywica epoksydowa RAL 6029
- Exhaust valve
- wylot 1 1/4 GW
- Connecting elements
- mosiądz
