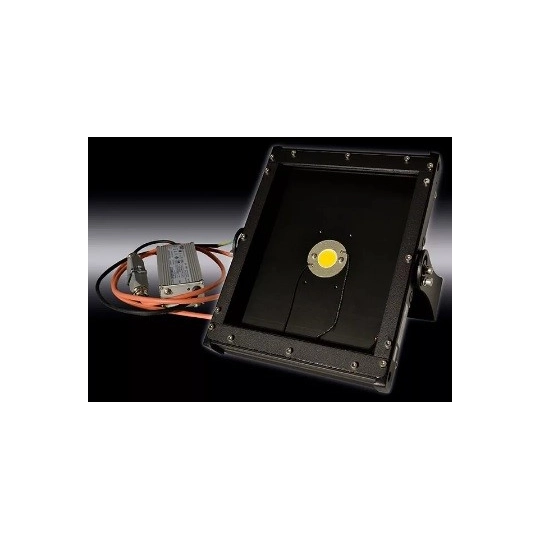

Industrial lamp for high temperatures STORM
Reference:
109-7-WPH-1171
STORM reliable LED lamp for operation in high temperatures, with selectable power (50W, 150W and 235W) and natural (4000K) or natural-cool (5000K) color temperature.
Thanks to its high resistance, luminous efficacy and flexible configuration options, it is ideal for demanding industrial environments, steelworks, rolling mills, tunnel furnaces, production machines and wherever lighting resistant to extreme temperatures and difficult working conditions is required.
Reliable lighting for extreme conditions. The STORM EVO SUPER HT lamp was designed for operation at high temperatures reaching up to 120°C. Ideal for industrial furnaces, rolling mills, and machines with high heat emission, it ensures maximum durability and safety.
Key benefits:
- Resistance to extreme temperatures – guaranteed operation up to +80°C, temporary resistance up to 120°C.*
- High luminous efficiency – actual luminous flux up to 17,595 lm (in the 150W version), for maximum visibility.
- Durability and reliability – lifespan up to 100,000 h at +25°C, solid anodized aluminum housing, 6 mm tempered glass.
- IP66 protection rating, IK08 impact resistance, RG1 photobiological safety.
- Flexible configuration – available in 50W and 150W versions, possibility to choose light color (4000K or 5000K), cable length and mounting on request.
Power supply: 90-305Vac, 50-60Hz, IP67 power supply unit, cable resistant to high temperature (2 m as standard)
Luminous flux: up to 17,595 lm (actual), depending on the version
Material: anodized aluminum, 6 mm tempered glass, silicone gaskets, stainless steel
*The product is covered by a 2-year warranty up to a temperature of +80°C, but it is also capable of withstanding peak temperatures of 100/120°C.
Product Details
- Reference
- 109-7-WPH-1171
- Weight
- 12,5 kg
- Warranty
- 2 lata
- Operating temperature range
- -40°C + 80°C
- Country of production
- Włochy
- Degree of protection
- IP66
- Dimensions (W x D x H)
- 290 x 560 x 185 mm
