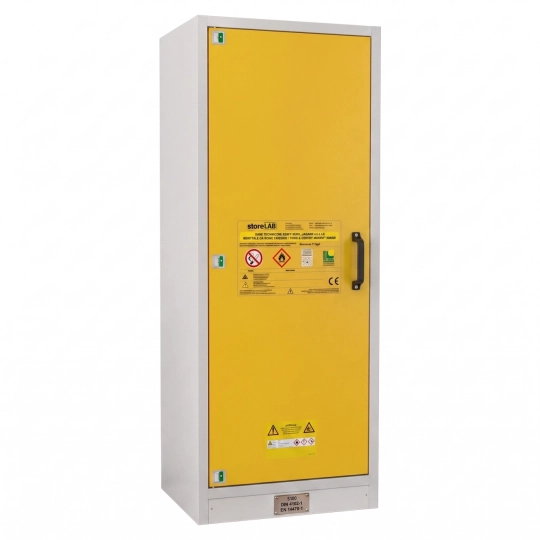

Fire-resistant cabinet 30 min S, 595 × 595 × 1315 mm, single-door

Stable and durable construction of the fire-resistant cabinet:

• Interior equipment elements: made of sheet steel.
• Exterior finish: cabinet body made of flame-retardant class B1 material
• Cabinet doors: painted light gray (RAL 7035) or yellow (RAL 1007).

Safety and fire resistance:

• Fire dampers and doors: automatic ventilation dampers (air inlet and outlet) close automatically when the temperature around the cabinet rises to 70°C.
• The automatic door closing system activates automatically when the temperature rises to ≤50°C.
• Fire protection: the entire construction tested for fire resistance of more than 30 minutes in accordance with DIN EN 14470-1 (Type 30).

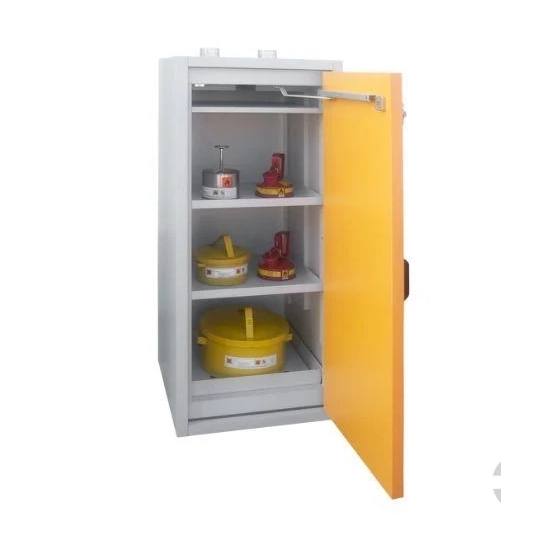

Fire-resistant cabinet equipment:

• 3 storage levels: including 2 height-adjustable steel shelves and 1 bottom spill tray with a capacity of 22 liters (compliant with AwSV regulations and bearing the Ü mark according to StawaR), with a perforated sheet metal cover serving as the first storage level.
• Integrated grounding connection (compliant with TRBS 2153, preventing the formation of ignition sources) and adjustable leveling feet to compensate for uneven floors.
• Mobility: easy transport with a pallet truck.
• Built-in mechanism for locking (holding) the doors open and a key-lockable cylinder lock.
• Marking: certified safety markings compliant with DIN EN 14470-1, TRGS 510, ISO 3864, and ASR A1.3.
• Ventilation: exhaust connection on the cabinet roof – the design also permits operation in accordance with TRGS 510 without connecting to an external air extraction system.
