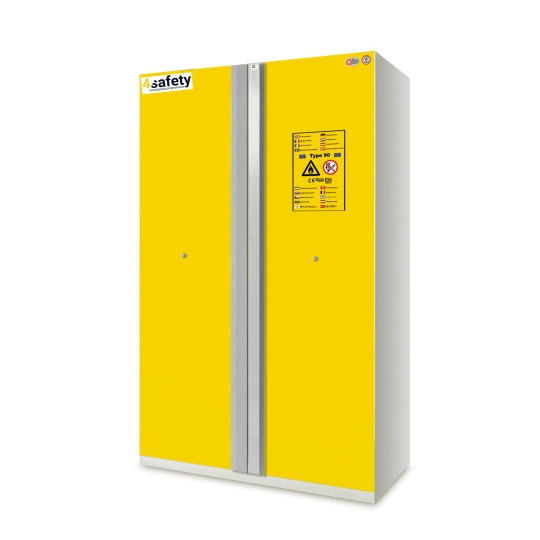

Fire-resistant cabinet 90 min BASIC size XL, 1200 x 600 x 1950 mm
Reference:
103-1-WCE-1067
- 90 min fire protection: resistance according to EN 14470-1 with an automatic door-closing system and ventilation sealing in case of fire.
- High load capacity and durability: interior equipped with 3 sealed stainless steel shelves (80 kg/shelf) and a spill tray with grating.
- Solid construction: galvanized sheet steel body, non-sparking hinges, and a finish resistant to chemicals and aggressive vapors.
- Specification: external dimensions 1200 x 600 x 1950 mm; weight 390 kg; double-leaf doors providing wide access.
- Certification and options: compliance with EN 16121 and CE; optional possibility of ventilation installation (available in EX/ATEX versions).
Other variants of this product
Reference
Name
Availability
Price
103-1-WCE-1096
1 pcs.
Lead time: 1-2 business days
zł12,310.22
tax excl.
zł15,141.57
tax incl.
103-1-WCE-1100
Termin realizacji: 10-14 dni robocze
zł16,140.89
tax excl.
zł19,853.30
tax incl.
Fire-resistant cabinet for hazardous substances effectively thermally insulates and protects the substances stored inside. It protects against fires and prevents the spread of fire in the event of contact with chemicals.
Stable and durable construction of the fire-resistant cabinet:
- made of galvanized steel sheet with a thickness of 1 - 1.5 mm,
- external finish: acid-resistant epoxy resin,
- internal finish: panels with high resistance to chemicals and aggressive vapors.
Safety and fire resistance:
- air inlet and outlet with certified fire dampers closing the ducts at temperatures above 70 °C in accordance with standard 4102-6,
- automatic door closing system, activated when the ambient temperature exceeds 50°C,
- thermo-expanding seals ensure perfect cabinet tightness in the event of a temperature increase, in accordance with EN14470-1.

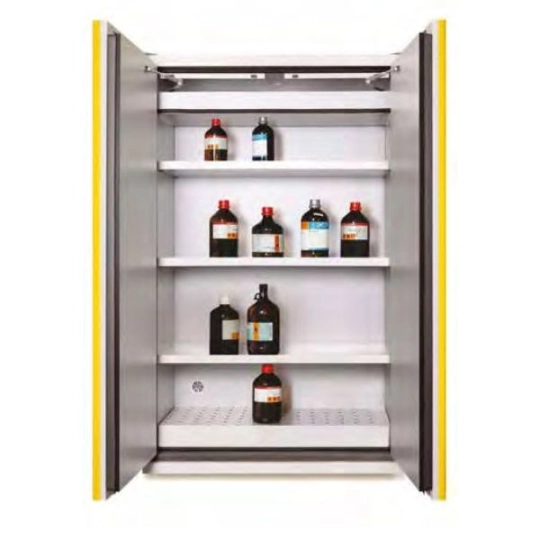

Equipment of the fire-resistant cabinet:
- 4 storage levels, including 1 bottom tray with grating,
- grounding, leveling feet,
- strong steel handle along the entire length of the door,
- non-sparking hinges,
- key lock,
- marking compliant with ISO 3864,
- design allowing replacement parts to be exchanged if necessary,
- optionally, the cabinet can be equipped with a fan or a filter fan in a standard version, or EX/ATEX.
Product Details
- Reference
- 103-1-WCE-1067
- Color
- jasnoszary RAL 7035, drzwi w kolorze żółtym RAL 1018
- Weight
- 390 kg
- Warranty
- 3 lata dla szaf z wentylacją, 1 rok dla szaf bez wentylacji
- Certificates
- CE, EN14470-1, EN16121
- External dimensions (WxDxH)
- 1200 x 600 x 1950 mm
- Internal dimensions (WxDxH)
- 1095 x 446 x 1540 mm
- Door construction
- dwuskrzydłowe
- Number of shelves
- 3 półki ze stali malowanej proszkowo oraz wanna wychwytowa z kratownicą
- Capture tub
- tak
- Housing
- blacha stalowa, ocynkowana
- Fire resistance
- 90 min
- Shelf load capacity
- 80 kg
