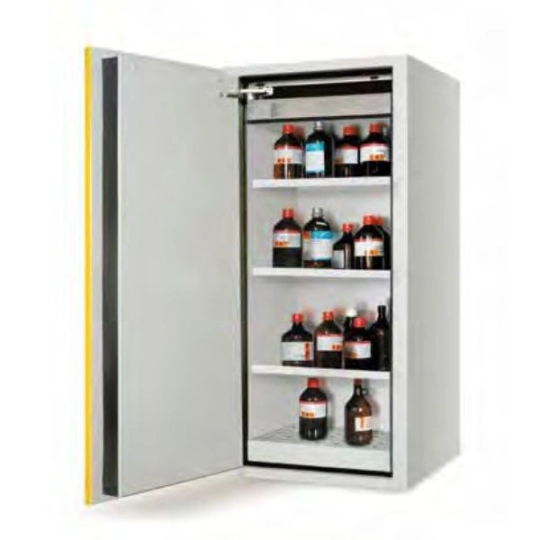

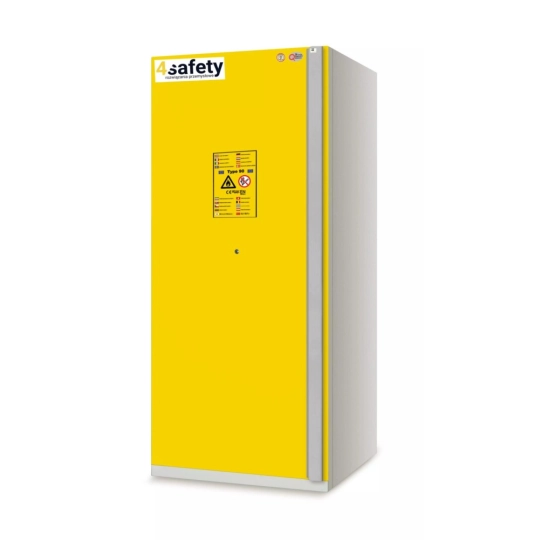

90-minute fire-resistant cabinet BASIC size L, 900 x 600 x 2050 mm
Reference:
103-1-WCE-1096
Fire-resistant cabinet intended for storing chemicals and flammable substances. Cabinet tested for 90 minutes in accordance with EN14470-1 BV and EN16121.
Other variants of this product
Reference
Name
Availability
Price
103-1-WCE-1067
Delivery within 4-5 weeks
zł15,939.00
tax excl.
zł19,604.97
tax incl.
103-1-WCE-1100
Termin realizacji: 10-14 dni robocze
zł16,140.89
tax excl.
zł19,853.30
tax incl.
Fire-resistant cabinet for hazardous substances provides effective thermal insulation and protects the substances stored inside. It offers protection against fires and prevents the spread of fire in the event of contact with chemicals.
The stable and durable construction of the fire-resistant cabinet:
- made from galvanised steel sheet 1–1.5 mm thick,
- external finish: made of acid-resistant epoxy resin,
- Internal finish: made from panels with high resistance to chemicals and corrosive vapours.
Safety and fire resistance:
- air inlets and outlets fitted with certified fire dampers that close the ducts when the temperature exceeds 70 °C, in accordance with standard 4102-6,
- an automatic door-closing system that activates when the ambient temperature exceeds 50°C,
- Thermo-expanding seals ensure the cabinet remains perfectly airtight in the event of a rise in temperature, in accordance with standard EN 14470-1.
Contents of the fire-resistant cabinet:

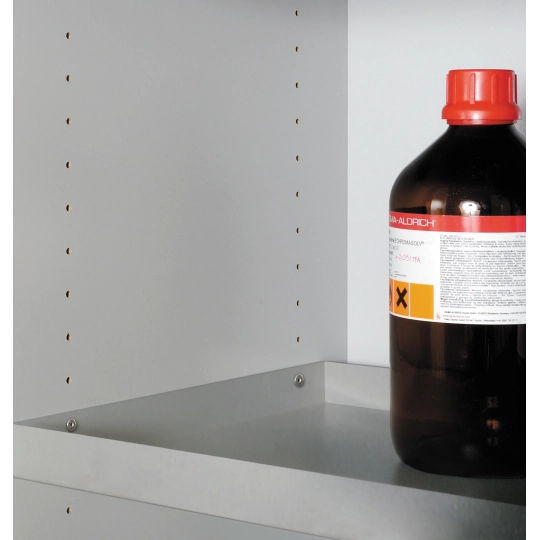

- 4 storage levels, including 1 lower tray with a lattice structure,
- earthing, levelling feet,
- single-leaf right-hand door, handle on the left-hand side.*,
- a pallet base designed to facilitate transport,
- non-sparking hinges,
- key-operated lock,
- marking in accordance with ISO 3864,
- a design that allows spare parts to be replaced as and when necessary,
- Optionally, the cabinet can be fitted with a fan or a fan-filter unit in either the standard version or the EX/ATEX version.
*A wardrobe with left-hand doors is also available. Please contact us for further information.
Product Details
- Reference
- 103-1-WCE-1096
- Color
- jasnoszary RAL 7035, drzwi w kolorze żółtym RAL 1018
- Weight
- 280 kg
- Warranty
- 3 lata dla szaf z wentylacją, 1 rok dla szaf bez wentylacji
- Certificates
- CE, EN14470-1, EN16121
- External dimensions (WxDxH)
- 900 x 600 x 2050 mm
- Internal dimensions (WxDxH)
- 796 x 446 x 1540 mm
- Door construction
- jednoskrzydłowe
- Number of shelves
- 3 półki ze stali malowanej proszkowo o nośności 70 kg
- Capture tub
- tak
- Housing
- blacha stalowa, ocynkowana
- Fire resistance
- 90 min
