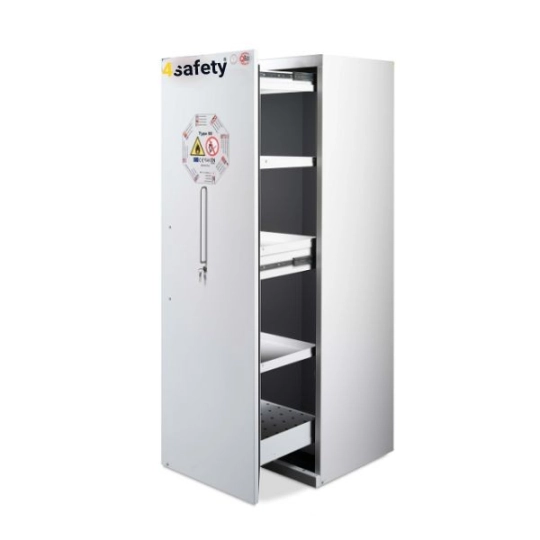

Fire-resistant cabinet 90 min BASIC size M 600 x 600 x 2050 mm
Reference:
103-1-WCE-1100
- 90 min fire resistance: Compliance with the EN 14470-1 standard and an automatic door and ventilation sealing system in the event of fire.
- Pull-out system: Single-leaf pull-out doors providing convenient access to 3 tight shelf-trays and a spill containment sump with grating.
- Durable housing: Body made of galvanized sheet steel with a chemical-resistant interior, non-sparking hinges, and a pallet base for transport.
- Optional ventilation: Possibility of installing a fan or filter fan, also available in the EX/ATEX standard.
- Overall specification: External dimensions 600 x 600 x 2050 mm; weight 210 kg; CE, EN 14470-1 and EN 16121 certifications.
Other variants of this product
Reference
Name
Availability
Price
103-1-WCE-1067
Delivery within 4-5 weeks
zł15,939.00
tax excl.
zł19,604.97
tax incl.
103-1-WCE-1096
1 pcs.
Lead time: 1-2 business days
zł12,310.22
tax excl.
zł15,141.57
tax incl.
Fire-resistant cabinet for hazardous substances effectively thermally insulates and protects the substances stored inside it. It protects against fires and prevents the spread of fire in the event of contact with chemicals.
Stable and durable fire-resistant cabinet construction:
- made of galvanized steel sheet with a thickness of 1 - 1.5 mm,
- external finish: acid-resistant epoxy resin,
- internal finish: made of panels with high resistance to chemicals and aggressive vapors.
Safety and fire resistance:
- air inlet and outlet with certified fire dampers closing the ducts at temperatures above 70 °C in accordance with standard 4102-6,
- automatic door closing system, which activates when the ambient temperature exceeds 50°C,
- thermo-expanding seals ensure perfect cabinet tightness in the event of a temperature increase, in accordance with EN14470-1.
Fire-resistant cabinet equipment:
- 4 storage levels, including 1 bottom sump tray with grating,
- grounding, leveling feet,
- pallet base facilitating transport,
- non-sparking hinges,
- key lock,
- marking compliant with ISO 3864,
- design allowing replacement of spare parts if needed,
- optionally, the cabinet can be equipped with a fan or filter fan in a standard version, or EX/ATEX.
Product Details
- Reference
- 103-1-WCE-1100
- Color
- jasnoszary RAL 7035, drzwi w kolorze żółtym RAL 1018
- Weight
- 210 kg
- Warranty
- 3 lata dla szaf z wentylacją, 1 rok dla szaf bez wentylacji
- Certificates
- CE, EN14470-1, EN16121
- External dimensions (WxDxH)
- 600 x 600 x 2050 mm
- Internal dimensions (WxDxH)
- 496 x 446 x 1540 mm
- Number of shelves
- 3 półki ze stali malowanej proszkowo oraz wanna wychwytowa z kratownicą
- Capture tub
- tak
- Housing
- blacha stalowa, ocynkowana
- Fire resistance
- 90 min
- Shelf load capacity
- 60 kg
