Combined shower and eyewash unit floor-mounted with foot pedal
Reference:
110-1-WBC-1007
- Operation: eye wash (14 l/min) activated by a hand lever or foot pedal; shower (120 l/min) activated by a pull rod with a triangular handle.
- Resistance: head and bowl made of PP plastic (RAL 6029); frame made of galvanized steel, powder-coated, with brass fittings.
- Performance: 1 1/4" female threaded connection; required flow min. 100 l/min at operating pressure 0.2–0.5 MPa.
- Standards: the product meets the requirements of EN 15154-1/2 and ANSI Z358.1-2004; it has the CE mark and occupational health and safety labeling.
- Operating conditions: optimal effectiveness at supply water temperature in the range of 15–35°C.
Other variants of this product
Reference
Name
Availability
Price
110-1-WBC-1031
Lead time: 2 weeks
zł9,379.20
tax excl.
zł11,536.42
tax incl.
110-1-WBC-1028
2 pcs.
Lead time: 1–2 business days
zł1,153.70
tax excl.
zł1,419.05
tax incl.
110-1-WBC-1022
Lead time: 2 weeks
zł3,055.60
tax excl.
zł3,758.39
tax incl.
110-1-WBC-1008
2 pcs.
Lead time: 1-2 business days
zł3,300.70
tax excl.
zł4,059.86
tax incl.
110-1-WBC-1006
1 pcs.
Lead time: 1–2 business days
zł2,362.80
tax excl.
zł2,906.24
tax incl.
The device combines the functions of an emergency shower and an eye and face wash station, enabling effective and quick rinsing of hazardous liquids from the entire body, including the face and eyes.
It is equipped with an additional foot pedal, which increases its functionality and user comfort.
Device features:
Shower head and eyewash bowl:
- Made of flexible PP material with high chemical resistance.
Construction:
- Powder-coated galvanized steel.
- Connecting elements made of brass.
Activation:
- The eyewash is activated using a hand lever located by the eyewash bowl or by means of a foot pedal.
- The shower is activated using a hand lever with a triangular handle.
Emergency device floor-mounted, combining the functions of a shower and an eye and face wash station.
Equipped with a shower head and eyewash bowl made of flexible PP material, and a construction of powder-coated galvanized steel.
Connecting elements made of brass. The eyewash is activated manually or by foot, the shower is activated manually.
Product Details
- Reference
- 110-1-WBC-1007

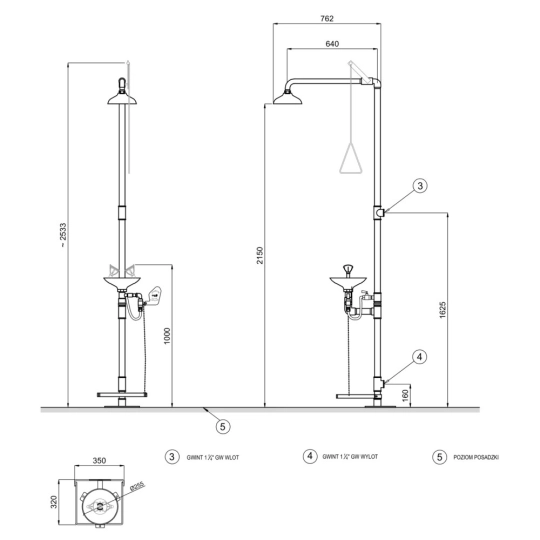

- Dimensions (W x D x H)
- 762 x 762 x 2150 mm
- Device power supply
- 1 1/4 GW
- Material
- stal malowana
- Diameter
- 300 mm
- Finish
- zielona żywica epoksydowa RAL 6029
- Feed water pressure
- min. 0,2 MPa, max 0,5 Mpa
- Shower performance
- 120 l/m(przy 0,3 MPa)
- Eyewash performance
- 14 l/m(przy 0,3 MPa)
