Laboratory eyewash stations – Application, requirements and availability
Combined device, shower and eyewash floor-mounted, entirely made of stainless steel
- Comprehensive 2-in-1 protection: A combination of an emergency shower (120 l/min) and an eye and face wash station (14 l/min) to ensure complete safety.
- Premium construction: The entire structure is made of high-grade stainless steel, guaranteeing the highest resistance to corrosion and external factors.
- Independent control: The shower is activated by a pull rod with a triangular handle, and the eyewash by an ergonomic hand lever by the bowl.
- Certified compliance: The device complies with EN 15154-1 and 2 and ANSI Z358.1-2004 standards, bears the CE mark and includes an OHS sign.

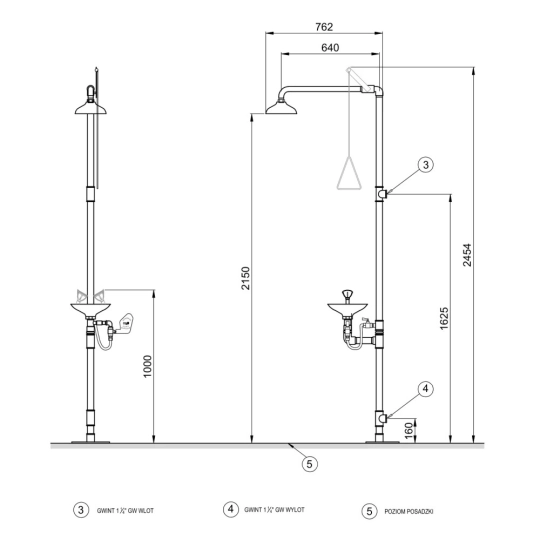

- Operating parameters: Supply connection 1 1/4" female thread; operating pressure 0.2–0.5 MPa at the recommended water temperature of 15–35°C.
Other variants of this product
Lead time: 2 weeks
Lead time: 1–2 business days
Lead time: 2 weeks
Lead time: 2 weeks
Lead time: 1-2 business days
Lead time: 2 weeks
A modern and durable emergency unit that combines the functions of a shower and an eyewash station, providing quick and effective rinsing of hazardous substances from the entire body, including the face and eyes.
Designed for floor mounting, made entirely of stainless steel, which ensures durability and corrosion resistance.
Device features:
Shower head and eyewash bowl:
- Stainless steel
Construction:
- Stainless steel

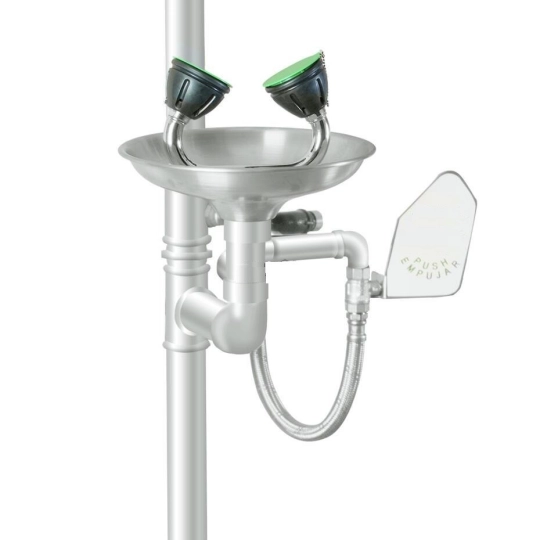

Eyewash station:
- Activated using a hand lever located next to the eyewash bowl or by means of a foot pedal.
Shower:
- Activated using a hand lever with a triangular handle.
The unit is an ideal solution for industrial plants, laboratories, workshops, and all places where there is a risk of contact with hazardous chemical substances.
Thanks to its solid construction and high-quality materials, the unit ensures reliable operation for many years.
Product Details
- Reference
- 110-1-WBC-1031
- Device power supply
- 1 1/4 GW
- Material
- stal nierdzewna
- Feed water pressure
- min. 0,2 MPa, max 0,5 Mpa
- Recommended water temperature
- min. 15°C, max 35°C
- Shower performance
- 120 l/m(przy 0,3 MPa)
- Eyewash performance
- 14 l/m(przy 0,3 MPa)
- Minimum required flow
- 100 l/min. przy 0,2 MPa
