Laboratory eyewash stations – Application, requirements and availability

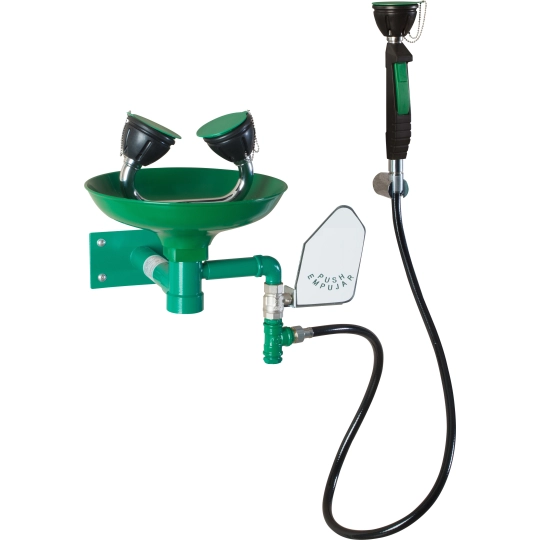

Wall-mounted eyewash with tray and additional single eye-washing spray head
- Extended functionality: The device is equipped with a stationary tray and an additional mobile hand shower on a flexible hose for precise rinsing.
- Protective epoxy coating: Construction made of painted steel in RAL 6029 (green), resistant to corrosive and chemical effects.
- Efficient flow: Constant water flow rate of 14 l/min, ensuring effective removal of contaminants from the face and eyes.

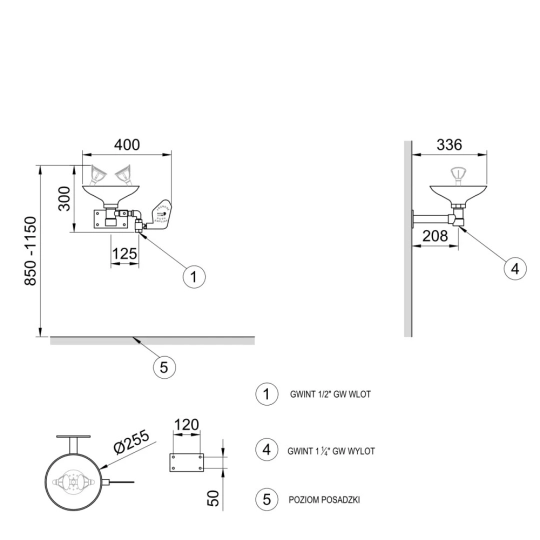

- Compact dimensions: Collector diameter 255 mm and depth 335 mm facilitate installation in narrow passageways or smaller laboratories.
- Standard connections: Quick installation thanks to the use of a 1/2" G inlet and a 1-1/4" G drain (outlet) with internal threads.
Other variants of this product
Lead time: 2 weeks
The wall-mounted eyewash with tray is an advanced device designed to ensure the highest level of safety and hygiene in workplaces where there is a risk of contact with hazardous chemical substances.
The eyewash allows for quick and effective rinsing of hazardous liquids from the face and eyes, minimizing the risk of serious injury.
Features:
Robust construction:
- Made of durable, corrosion-resistant materials such as stainless steel and plastics.
- The integrated tray effectively drains used water, keeping the workplace clean and dry.
Activation:
- An intuitive hand lever located next to the eyewash bowl enables quick and easy activation of the device in emergency situations.
- The lever is designed so that it can be operated with one hand, which is extremely important in sudden situations.
Additional single eye wash spray head:
- The single spray head enables thorough rinsing of the eyes, ensuring precision and effectiveness.
- The highly flexible hose allows free manipulation of the spray head, adjusting its position to the individual needs of the user.
Installation:
- The eyewash is suitable for installation in walls with a thickness of 200 to 390 mm, which allows it to be mounted in a wide range of construction conditions.
- The set includes all necessary mounting elements, which simplifies the installation process and ensures the stability of the device.
The wall-mounted eyewash with tray and additional eye wash spray head is an ideal solution for chemical laboratories, industrial plants, mechanical workshops, and other workplaces where there is a risk of contact with chemical substances or other hazardous materials. Thanks to its robust construction and ease of use, this product is an indispensable tool in emergency situations, ensuring the safety and health protection of employees.
Product Details
- Reference
- 110-1-WBC-1018
- Material
- Polipropylen
- Flow rate
- 14 l/min
- Inlet valve
- wlot 1/2 GW
- Finish
- zielona żywica epoksydowa RAL 6029
- Collector diameter
- 255 mm
- Exhaust valve
- wlot 1 1/4 GW
- Connecting elements
- mosiądz
