Laboratory eyewash stations – Application, requirements and availability

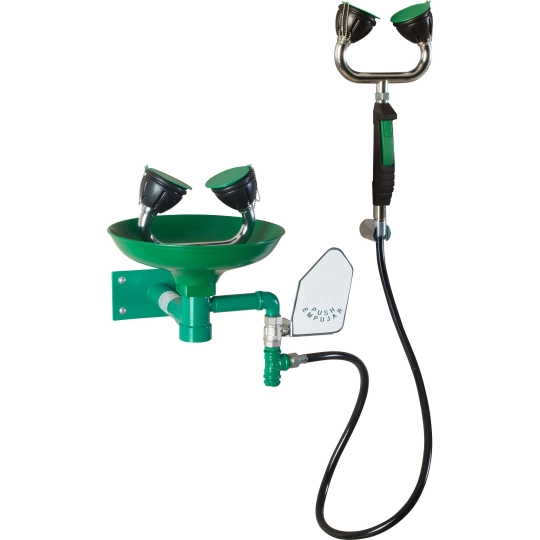

Wall-mounted eyewash with tray and additional double eyewash spray head
- Versatile rinsing system: The device is equipped with a stationary tray and an additional double spray head, ensuring precise eye rinsing.
- High durability: Made of painted steel and finished with a chemical-resistant green epoxy paint (RAL 6029).
- Optimal performance: Constant flow rate of 14 l/min, guaranteeing effective assistance in emergency situations.
- Standard connections: 1/2" G water inlet and 1-1/4" G drain with internal threads, facilitating quick installation to the system.
- Compact design: Collector diameter of 255 mm and depth of 335 mm allow installation in places with limited space.
Other variants of this product
Lead time: 2 weeks
A wall-mounted eyewash station with a tray and an additional single spray head for eye washing is an advanced safety device designed for the quick and effective rinsing of hazardous liquids from the face and eyes.
Ideal for use in industrial plants, chemical laboratories, schools, and anywhere there is a risk of contact with hazardous substances.
Robust construction:
- Made of high-quality stainless steel, ensuring corrosion resistance.
- The eyewash bowl is made of a durable material resistant to chemicals.
Functionality:
- The tray located beneath the eyewash station allows water collection and ensures cleanliness and dryness in the workplace.
- It prevents water splashing, minimizing the risk of slipping.
Additional single spray head:
- Equipped with a flexible hose that enables thorough rinsing of the eyes and face in any direction. The spray head is easy to use and provides full control over the water flow.
Ease of use:
- Activated using a hand lever located by the eyewash bowl, allowing quick and easy switching on of the device in an emergency.
- The intuitive activation mechanism enables an immediate response, which is crucial in the event of contact with hazardous substances.
Flexible installation:
- Adapted for installation in walls with a thickness of 200 to 390 mm, ensuring versatile mounting in various wall types.
- Easy assembly and disassembly thanks to the supplied mounting components and detailed installation instructions.
Safety and Hygiene:
- The eye rinsing system is designed in a way that minimizes the risk of infection and irritation.
- The device is equipped with a self-cleaning system that ensures cleanliness and readiness for use at any time.
Product Details
- Reference
- 110-1-WBC-1019
- Dimensions (W x D x H)
- 300 x 355 x 400 mm
- Material
- stal malowana
- Finish
- zielona żywica epoksydowa RAL 6029
- Inlet valve
- wlot 1/2 GW
- Exhaust valve
- wylot 1 1/4 GW
