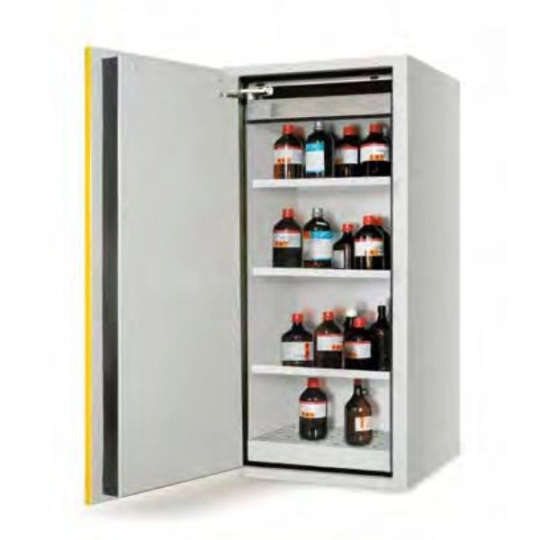

Fire-resistant cabinet 90 min BASIC size L, 900 x 600 x 1950 mm
Reference:
103-1-WCE-1101
- Fire protection: fire resistance class 90 min (EN 14470-1) with an automatic door-closing system and sealing of ventilation openings in the event of fire.
- Robust construction: body made of galvanized steel sheet; chemical-resistant interior; non-sparking hinges increasing safety.
- Storage organization: 4 levels including 3 leak-proof shelves with a load capacity of 70 kg and a bottom in the form of a spill containment tray with grating.
- Specification: 900 x 600 x 1950 mm; weight 280 kg; ventilation connection possible (optionally in EX/ATEX standard).
- Certification: compliance with EN 14470-1, EN 16121 standards and CE marking.
Fire-resistant cabinet for hazardous substances effectively thermally insulates and protects the substances stored inside it. It protects against fires and prevents the spread of fire in the event of contact with chemicals.
Stable and durable fire-resistant cabinet construction:
- made of galvanized sheet steel with a thickness of 1 - 1.5 mm,
- external finish: acid-resistant epoxy resin,
- internal finish: made of panels with high resistance to chemicals and aggressive vapors.
Safety and fire resistance:
- air inlet and outlet with certified fire dampers closing the ducts at temperatures above 70 °C in accordance with standard 4102-6,
- automatic door-closing system that activates when the ambient temperature exceeds 50°C,
- thermo-expanding seals ensure perfect cabinet tightness in the event of a temperature increase, in accordance with EN14470-1.
Fire-resistant cabinet equipment:
- 4 storage levels, including 1 lower sump tray with grating,
- grounding, leveling feet,
- strong steel handle along the entire length of the door,
- non-sparking hinges,
- right-hand single-leaf door, handle on the left side*,
- key lock,
- marking compliant with ISO 3864,
- construction allowing replacement of spare parts if needed,
- optionally, the cabinet can be equipped with a fan or filter fan in the standard version, or EX/ATEX.
*A cabinet with left-hand doors is also available in the offer. Contact us for more information.
Product Details
- Reference
- 103-1-WCE-1101
- Color
- jasnoszary RAL 7035, drzwi w kolorze żółtym RAL 1018
- Weight
- 275 kg
- Warranty
- 3 lata dla szaf z wentylacją, 1 rok dla szaf bez wentylacji
- Produced
- we Włoszech
- Certificates
- CE, EN14470-1, EN16121
- External dimensions (WxDxH)
- 900 x 600 x 1950 mm
- Internal dimensions (WxDxH)
- 796 x 446 x 1540 mm
- Door construction
- jednoskrzydłowe
- Number of shelves
- 3 półki ze stali malowanej proszkowo oraz wanna wychwytowa z kratownicą
- Housing
- blacha stalowa, ocynkowana
- Fire resistance
- 90 min
- Shelf load capacity
- 70 kg
