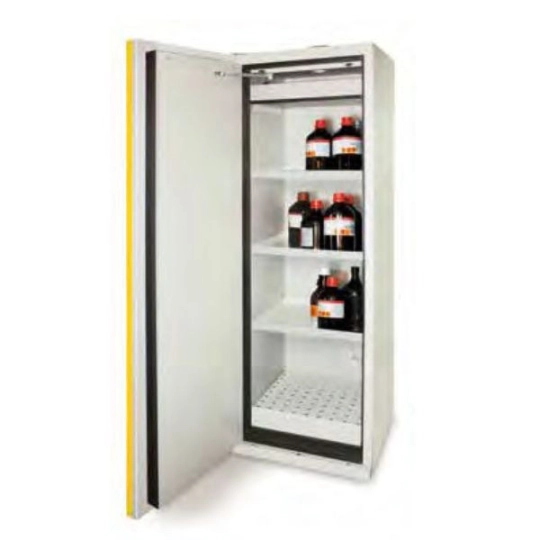

90-minute fire-resistant cabinet BASIC size M, 600 x 600 x 1950 mm
Reference:
103-1-WCE-1103
- 90 min fire resistance: full safety for flammable substances in accordance with the EN 14470-1 standard and an automatic door and ventilation sealing system.
- Durable construction: body made of galvanized sheet steel, chemically resistant interior finish, and non-sparking hinges.
- Internal equipment: 4 storage levels: 3 leak-proof shelves with a load capacity of 60 kg and a sump tray with grating.
- Specification: external dimensions 600 x 600 x 1950 mm; weight 210 kg; left-hand single-leaf door.
- Certification and options: CE, EN 14470-1 and EN 16121 certified; ventilation can be installed (optionally in the EX/ATEX version).
Fire-resistant cabinet for hazardous substances effectively provides thermal insulation and protects the substances stored inside. It protects against fires and prevents the spread of fire in the event of contact with chemicals.
Stable and durable fire-resistant cabinet construction:
- made of galvanized sheet steel with a thickness of 1–1.5 mm,
- external finish: acid-resistant epoxy resin,
- internal finish: made of panels with high resistance to chemicals and aggressive vapors.
Safety and fire resistance:
- air inlet and outlet with certified fire dampers closing the ducts at temperatures above 70 °C in accordance with standard 4102-6,
- automatic door closing system that activates when the ambient temperature exceeds 50°C,
- thermo-expanding seals ensure perfect cabinet tightness in the event of a temperature increase, in accordance with EN14470-1.
Fire-resistant cabinet equipment:
- 4 storage levels, including 1 bottom sump tray with grating,
- grounding, leveling feet,
- strong steel handle along the entire length of the door,
- right-hand single-leaf door, handle on the left side*,
- non-sparking hinges,
- key lock,
- marking in accordance with ISO 3864,
- design enabling replacement of spare parts when needed,
- optionally, the cabinet can be equipped with a fan or filter fan in standard or EX/ATEX version.
*A wardrobe with left-hand doors is also available. Contact us for more information.
Product Details
- Reference
- 103-1-WCE-1103
- Color
- jasnoszary RAL 7035, drzwi w kolorze żółtym RAL 1018
- Weight
- 210 kg
- Warranty
- 3 lata dla szaf z wentylacją, 1 rok dla szaf bez wentylacji
- Produced
- we Włoszech
- Certificates
- CE, EN14470-1, EN16121
- External dimensions (WxDxH)
- 600 x 600 x 1950 mm
- Internal dimensions (WxDxH)
- 496 x 446 x 1540 mm
- Door construction
- jednoskrzydłowe
- Number of shelves
- 3 półki ze stali malowanej proszkowo oraz wanna wychwytowa z kratownicą
- Housing
- blacha stalowa, ocynkowana
- Fire resistance
- 90 min
- Shelf load capacity
- 60 kg
