Do you store hazardous substances, flammable liquids in your facility? In this article, we will help you choose the best fire-resistant cabinet for your facility.

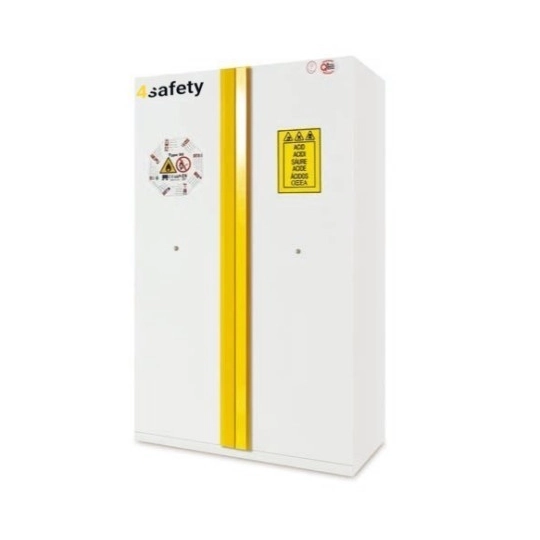

Fire-resistant cabinet 90 min, 2 modules: flammables/acids and bases COMBISTORAGE size XL
Reference:
103-1-WCE-1180
- Maximum protection: fire resistance 90 min (EN 14470-1) and high chemical resistance thanks to acid-resistant epoxy resin and HPL laminate panels.
- Dual-module construction: separate sections for flammable materials (3 sealed shelves + tray with grate) and acids and bases (3 shelves).
- Automatic safety: self-closing door system and ventilation sealing in the event of fire; equipped with grounding and non-sparking hinges.
- Specification: external dimensions 1200 x 600 x 2050 mm; weight 358 kg; pallet base and leveling jacks included.
- Certification: compliant with EN 16121; CE mark; can be equipped with ventilation (STD or EX/ATEX version).
Other variants of this product
Reference
Name
Availability
Price
103-1-WCE-1017
Dostawa w ciągu 4-5 tygodni
zł17,532.90
tax excl.
zł21,565.47
tax incl.
103-1-WCE-1018
Dostawa w ciągu 4-5 tygodni
zł17,798.55
tax excl.
zł21,892.22
tax incl.
103-1-WCE-1060
Dostawa w ciągu 4-5 tygodni
zł16,735.95
tax excl.
zł20,585.22
tax incl.
103-1-WCE-1071
Delivery within 4–5 weeks
zł11,954.25
tax excl.
zł14,703.73
tax incl.
103-1-WCE-1072
Delivery within 4-5 weeks
zł11,024.48
tax excl.
zł13,560.10
tax incl.
103-1-WCE-1178
Termin realizacji: 10-14 dni robocze
zł11,555.78
tax excl.
zł14,213.60
tax incl.
103-1-WCE-1179
Termin realizacji: 10-14 dni robocze
zł12,485.55
tax excl.
zł15,357.23
tax incl.
103-1-WCE-1181
Termin realizacji: 10-14 dni robocze
zł18,064.20
tax excl.
zł22,218.97
tax incl.
103-1-WCE-1182
Termin realizacji: 10-14 dni robocze
zł18,329.85
tax excl.
zł22,545.72
tax incl.
Two-door fire-resistant cabinet intended for storing chemicals, toxic substances, and flammable materials. The cabinet was tested for 90 minutes in accordance with EN14470-1 BV. It effectively protects and thermally insulates the substances located inside it in the event of a fire. The cabinet with partitions allows the storage of several types of hazardous substances in one place, under safe conditions.
- air inlet and outlet with certified fire dampers closing the ducts at temperatures above 70 °C in accordance with DIN 4102-6
Equipment of the fire-resistant cabinet for chemicals:
- height-adjustable shelves
- spill tray with grating in the fire-resistant compartment
- grounding
- leveling feet
- non-sparking hinges
- We recommend equipping the cabinet with a fan or filter fan in standard or EX/ATEX version.
Possibility of dividing zones and adapting them to individual needs. Contact us for more information.
Product Details
- Reference
- 103-1-WCE-1180
- Color
- jasnoszary RAL 7035
- Weight
- 358 kg
- Warranty
- 3 lata dla szaf z wentylacją, 1 rok dla szaf bez wentylacji
- Country of production
- Włochy
- Certificates
- CE, EN14470-1, EN16121
- External dimensions (WxDxH)
- 1200 x 600 x 2050 mm
- Internal dimensions (WxDxH)
- 540/540 x 446 x 1540 mm
- Door construction
- dwuskrzydłowe
- Number of shelves
- 6 szt.
- Capture tub
- tak
- Housing
- blacha stalowa, ocynkowana
- Fire resistance
- 90 min
- Shelf load capacity
- 60 kg
