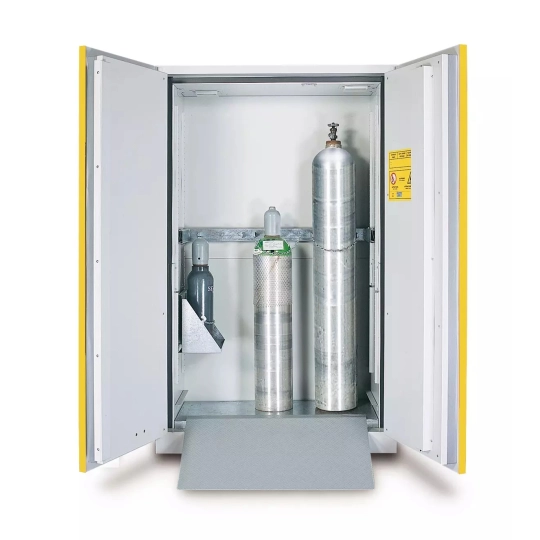

Fire-resistant cabinet for 3-4 gas cylinders size XL 30 min 1200 x 600 x 2050 mm
Reference:
103-1-WCE-1010
- 30 min fire protection: insulated construction compliant with EN 14470-2 BV; automatic sealing system for doors and ventilation ducts in the event of fire.
- Ventilation system: ducts ensuring safe airflow with the option to install a fan or filter fan in standard or EX/ATEX version.
- Technical equipment: cylinder mounting brackets, passages for pipes and cables, and a ramp facilitating the loading and unloading of cylinders.
- Specification: holds up to 4 cylinders (Ø 21/23 cm) or 3 (Ø 26 cm); external dimensions 1200 x 600 x 2050 mm; weight 445 kg.
- Safety and certification: powder-coated body (RAL 7035); the product has CE marking and meets safety requirements in workrooms.
Other variants of this product
Reference
Name
Availability
Price
103-1-WCE-1009
Delivery within 4-5 weeks
zł10,891.65
tax excl.
zł13,396.73
tax incl.
103-1-WCE-1014
Delivery within 4-5 weeks
zł16,204.65
tax excl.
zł19,931.72
tax incl.
103-1-WCE-1015
Delivery within 4-5 weeks
zł32,409.30
tax excl.
zł39,863.44
tax incl.
30-minute fire-resistant insulated cabinet designed for storing 3 cylinders with a Ø of 26 cm or 4 cylinders with a Ø of 21/23 cm in workrooms. The cabinet was tested for 30 minutes in accordance with EN14470-2 BV. It effectively protects against fires and prevents the spread of fire in the event the cabinet comes into contact with flames.
Stable and durable construction of the fire-resistant cabinet thanks to:
- made of electrolytically galvanized sheet steel with a thickness of 1 - 2 mm,
- external finish: acid-resistant epoxy resin,
- internal finish: melamine panels with high resistance to chemicals and aggressive fumes.
Safety and fire resistance are ensured by:
- air inlet and outlet with certified fire dampers closing the ducts at temperatures above 70 °C in accordance with DIN 4102-6,
- cabinet insulation using several high-density mineral wool panels,
- door closing and locking system allowing the doors to remain open and automatically closing them when the ambient temperature exceeds 50 °C.
Equipment of the fire-resistant cabinet for chemicals:
- 1 galvanized steel shelf for small gas cylinders,
- through-holes for gas pipes with a diameter of 12 mm, located in the middle and upper part of the cabinet,
- design allowing replacement of spare parts if necessary,
- grounding, leveling jacks.
- optionally, the cabinet can be equipped with a fan or filter fan in a standard or EX/ATEX version.
Various cabinet sizes and configurations available.
Product Details
- Reference
- 103-1-WCE-1010
- Color
- jasnoszary RAL 7035
- Weight
- 420 kg
- Warranty
- 3 lata dla szaf z wentylacją, 1 rok dla szaf bez wentylacji
- Country of production
- Włochy
- Certificates
- CE, EN14470-2 BV
- External dimensions (WxDxH)
- 1200 x 600 x 2050 mm
- Internal dimensions (WxDxH)
- 1050 x 400 x 1760 mm
- Door construction
- dwuskrzydłowe
- Number of shelves
- 1 półka
- Housing
- blacha stalowa, ocynkowana
- Fire resistance
- 30 min
