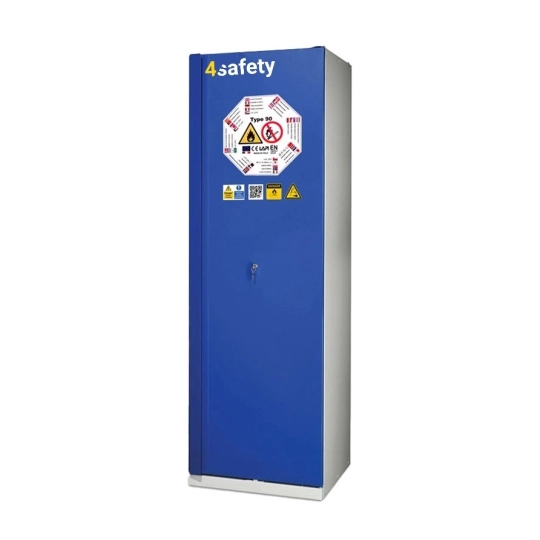

Fire-resistant cabinet for lithium-ion batteries, size S 90 min, 565 x 600 x 2050 mm

90-minute fire-resistant cabinet is the ideal solution for the safe storage of lithium batteries. It protects the batteries from fire, leaks, and other hazards.

• Made entirely of cold-pressed steel sheet with a thickness of 1/1.5 mm.
• Insulation resistant to extreme temperatures up to 800 °C.
• Interior finish with high resistance even to aggressive vapors.
• Hydraulic door closure at ambient temperatures above 47°C.
• The ventilation ducts close at a temperature of 70°C.
• Bottom spill tray (in accordance with the requirements of EN14470).

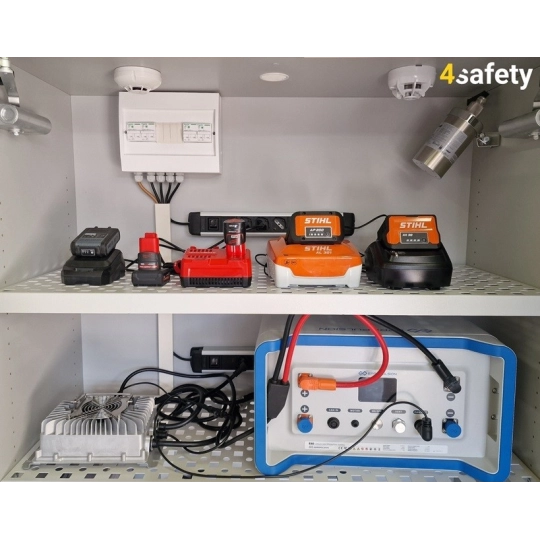

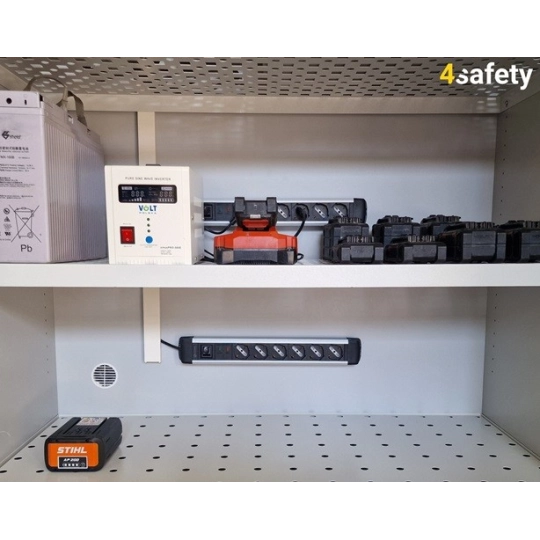

• Possibility of charging batteries inside the cabinet - in this case, power outlets for charging must be purchased separately.

Equipment of the cabinet for lithium-ion batteries:

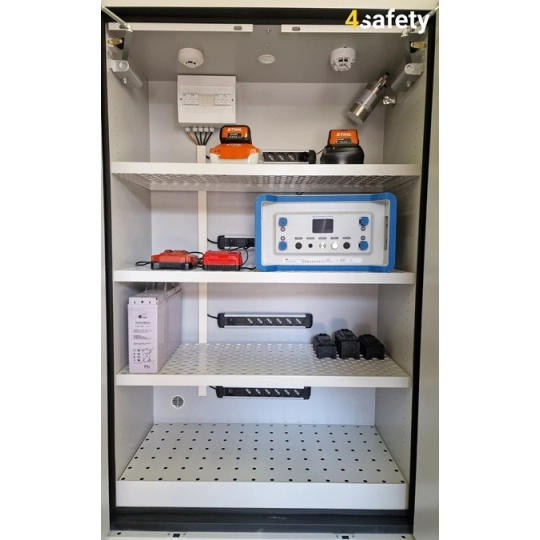

• 4 storage levels, including 1 bottom tray with grating,
• grounding, leveling feet,
• strong steel handle along the entire length of the door,
• pallet base facilitating transport,
• single right-hand door, handle on the left side*,
• non-sparking hinges,
• key lock,
• marking compliant with ISO 3864,
• design allowing replacement of spare parts if necessary,
• optionally, the cabinet can be equipped with a fan or filter fan in standard or EX/ATEX version.

*A cabinet with a left-hand door is also available in the offer. Contact us for more information.

You can additionally equip the cabinet with an Automatic fire extinguishing system, which provides even greater safety when charging lithium-ion batteries. In models with an integrated fire extinguishing system, when fire is detected it is automatically activated and begins the extinguishing process.
