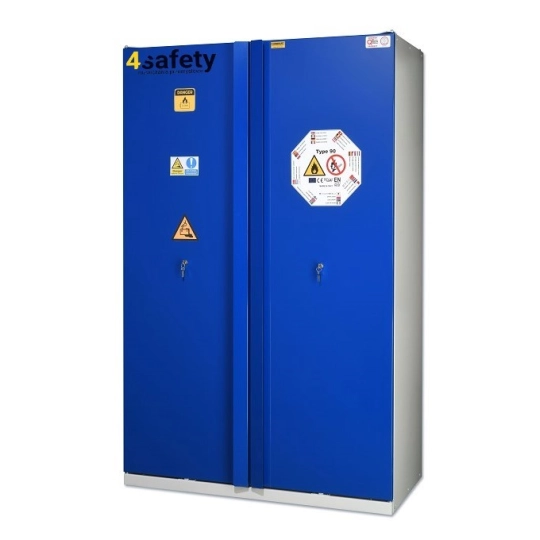

Fire-resistant cabinet for lithium-ion batteries, size XL 90 min, 1200 x 600 x 2050 mm

90 min fire-resistant cabinet is the ideal solution for safe storage of lithium batteries. It provides battery protection against fire, leaks, and other hazards.

• Made entirely of cold-pressed steel sheet with a thickness of 1/1.5 mm.
• Insulation resistant to extreme temperatures up to 800 °C.
• Interior finish with high resistance even to aggressive vapors.
• Hydraulic door closing at ambient temperatures above 47°C.
• The ventilation ducts close at a temperature of 70°C.
• Lower spill containment sump (in accordance with EN14470 standard requirements).

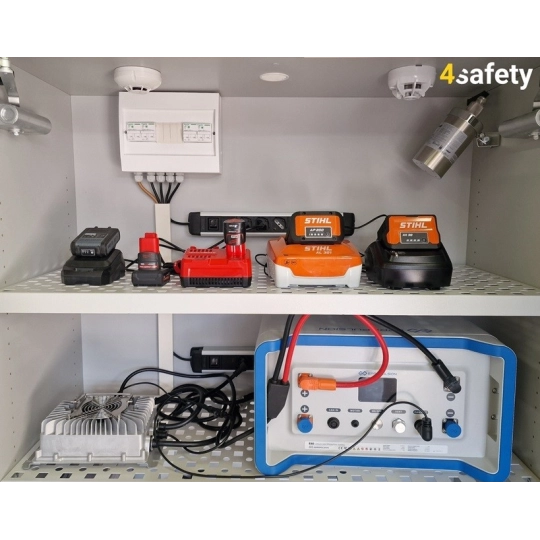

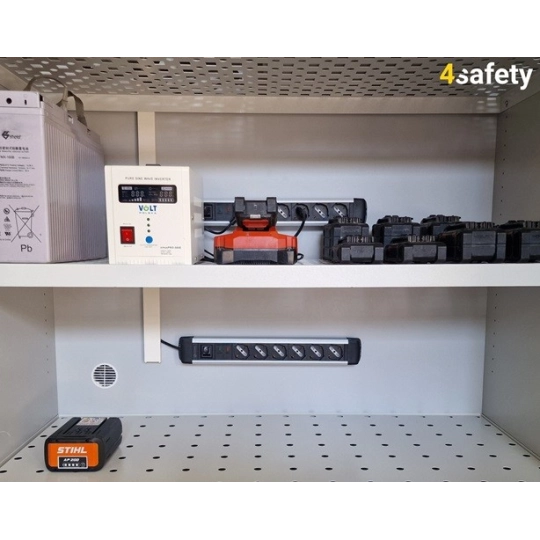

• Possibility of charging batteries inside the cabinet - in this case, power sockets for charging must be purchased separately.

Lithium-ion battery cabinet equipment:

• 4 storage levels, including 1 lower sump with grating,
• grounding, leveling feet,
• strong steel handle along the entire length of the door,
• pallet base facilitating transport,
• single right-hand door*,
• non-sparking hinges,
• key lock,
• marking in accordance with ISO 3864 standard,
• design allowing replacement of spare parts if necessary,
• optionally, the cabinet can be equipped with a fan or filter fan in standard or EX/ATEX version.

*A cabinet with left-hand door is also available in the offer. Contact us for more information.

You can additionally equip the cabinet with an automatic fire suppression system, which provides even greater safety during charging of lithium-ion batteries. In models with an integrated fire extinguishing system, once fire is detected, it is activated automatically and starts the extinguishing process.

Double protection: from the outside and from the inside

This fire-resistant cabinet for lithium-ion batteries complies with two separate safety standards — each of which protects against a different hazard.

EN 14470-1 certificate — protection against external fire

The EN 14470-1 standard confirms that the cabinet can withstand exposure to fire from the surrounding environment (e.g. a fire in a hall or warehouse) for a specified period of time — our cabinets for 90 minutes. This provides a realistic time window for evacuation and fire-fighting operations, during which the batteries stored in the cabinet remain safe.

VDMA 24994 test — fire protection from the inside

VDMA 24994 is a test specifically designed for lithium-ion batteries. What happens if the battery itself fails and causes uncontrolled overheating (known as ‘thermal runaway’) inside the cabinet? The test result is clear-cut: pass or fail.

Our cabinet passed this test successfully: during a controlled test, a cell inside the chamber caught fire and exploded, and yet:

• no flames appeared on the outside,
• the temperature of the external walls remained within safe limits,
• the fire did not spread to the other batteries in the cupboard,
• The door’s structure and locks remained intact.

What does this mean for you?

By choosing a cabinet that has been tested to both standards, you benefit from protection in both respects:

• EN 14470-1 — Your batteries are safe, even if a fire breaks out nearby.
• VDMA 24994 — Your staff and the building are safe, even if a fire breaks out inside the battery itself.
