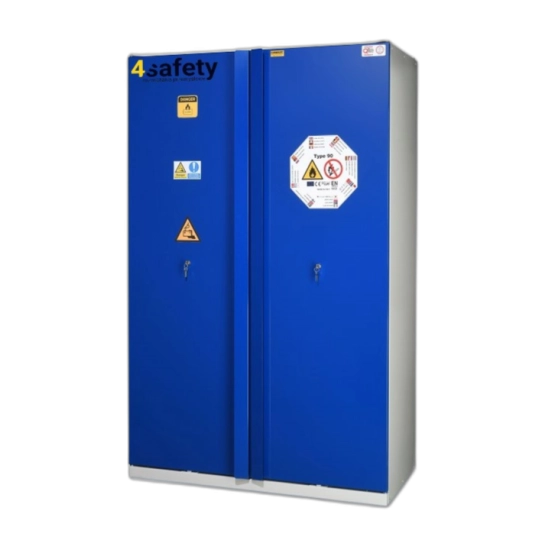

Fire-resistant cabinet for lithium-ion batteries with quarantine system, size XL 90 min 1200 x 600 x 2050 mm
Reference:
103-1-WCE-1085
- Quarantine system: automatic transfer of ignited batteries to a dedicated water tank to extinguish them.
- 90 min fire protection: insulation made of fibers resistant to 800°C; hydraulic closing of doors (above 47°C) and ventilation ducts (70°C).
- Construction and safety: housing made of cold-bent sheet steel; double-leaf doors equipped with non-sparking hinges.
- Specification: interior with 3 perforated shelves and a bottom drip tray; external dimensions 1200 x 600 x 2050 mm; weight 350 kg.
- Certification: full compliance with EN 14470-1 and EN 16121; the product bears the CE mark.
Other variants of this product
Reference
Name
Availability
Price
103-1-WCE-1011
Delivery within 4–5 weeks
zł10,923.53
tax excl.
zł13,435.94
tax incl.
103-1-WCE-1061
Delivery within 4-5 weeks
zł13,149.68
tax excl.
zł16,174.10
tax incl.
103-1-WCE-1077
Delivery within 4-5 weeks
zł16,789.08
tax excl.
zł20,650.57
tax incl.
103-1-WCE-1081
Delivery within 4-5 weeks
zł14,291.97
tax excl.
zł17,579.12
tax incl.
103-1-WCE-1083
Delivery within 4-5 weeks
zł15,673.35
tax excl.
zł19,278.22
tax incl.
103-1-WCE-1240
Termin realizacji: 10-14 dni robocze
zł21,093.00
tax excl.
zł25,944.39
tax incl.
103-1-WCE-1241
Termin realizacji: 10-14 dni robocze
zł17,985.00
tax excl.
zł22,121.55
tax incl.
90 min fire-resistant cabinet is the ideal solution for the safe storage of lithium batteries. It provides protection for batteries against fire, leaks, and other hazards.
- The cabinet body is made of cold-bent sheet steel.
- Internal finish with high resistance even to aggressive vapors.
- Hydraulic door closing at ambient temperatures above 47°C.
- The ventilation ducts close at a temperature of 70°C.

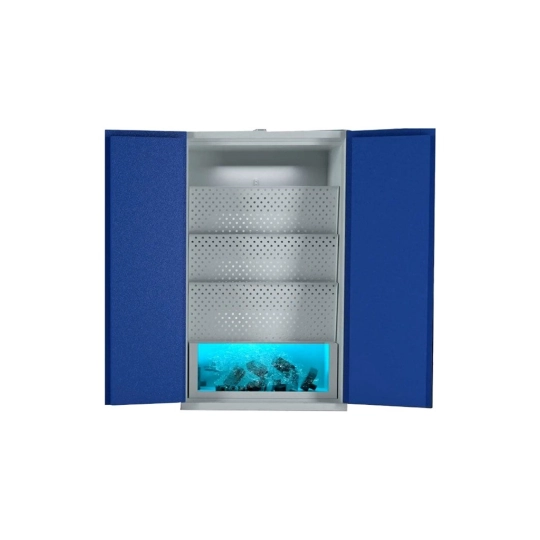

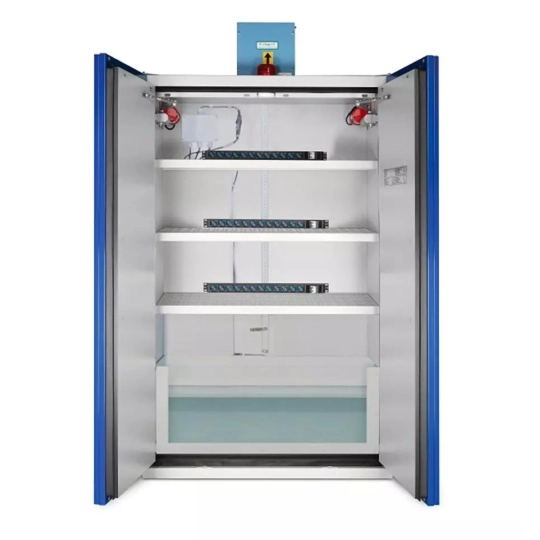

The cabinet has a quarantine system.
In the event of a fire, if the accumulators ignite, a special fuse will activate the mechanism that rotates the shelves and moves the accumulators into a water tank located at the bottom of the cabinet. At that moment, the batteries will also be disconnected from the charging source.
The battery cabinet includes:
- insulation consisting of high-density fiber panels resistant to high temperatures up to 800 °C,
- certified automatic closing valves,
- non-sparking hinges,
- height-adjustable feet,
- a bottom spill tray,
- perforated shelves,
- grounding
You can order the cabinet in various sizes and configurations. Contact us for more information
Product Details
- Reference
- 103-1-WCE-1085
- Dimensions (W x D x H)
- 1200 x 600 x 2050 mm
- Weight
- 350 kg Ilość półek
- Warranty
- 3 lata dla szaf z wentylacją, 1 rok dla szaf bez wentylacji
- Has a certificate
- CE, EN14470-1; EN16121
- Country of production
- Włochy
- Door construction
- dwuskrzydłowe
- Capture tub
- tak
- Fire resistance
- 90 min
